SOLD

Buy this guitar now using your credit card or Paypal.  It will ship from Westwood Music Center 1627 Westwood Blvd., Los Angeles, CA 90024. Questions?  Call 310 478-4251

LIFETIME WARRANTY / 72 HOUR RETURN POLICY

Scroll to bottom of this page for a photo / video display of this instrument.

Year constructed: 2013

Model: 00DM acoustic steel string guitar w/ 14 frets to the body and slotted head stock.

Name: Ruby

Luthier: Designed and built by Dey Martin

Serial Number: 7

Body style: 00

24.9" scale length

Neck width at nut 1 3/4" 43mm;

-271mm upper bout

-362mm hips lower bout

-480mm body length

-39" total length

Radiused top 25' and back 15';

 Pre-war Martin-pattern circa 1936-1938 influenced design forward X-braced, scalloped;

100% hand made from reclaimed and sustainably harvested master & AAA grade tone woods;

Hand bent sides - the old fashioned way on a heat pipe;

Hand shaped one piece neck;

Sinker Redwood soundboard (150 years old sunken logs reclaimed from the river bottom (master grade);

East Indian rosewood AAA grade back and sides;

Neck wood - aged reclaimed Honduran Mahogany taken from ~200 yrs old 4x12" beams;

Bolt on with mortise and tenon neck connection with bi-directional truss;

Scalloped tone bars German Spruce*

Pre-war Martin-pattern influenced X-braced top with "X" located 1 1/8" south of sound hole;

Popsicle brace upper;

Maple bridge plate;

Honduran mahogany kerfing;

Honduran Mahogany tail block;

Slotted headstock;

Radiused African Ebony fretboard;

Bound fretboard Indian Rosewood;

Indian Rosewood binding;

Black and white basswood & BWB pinstripe purfling;

Celtic motif decorative back strip and tail strip;

Celtic motif rosette bordered with paua abalone;

Natural bone nut and saddle

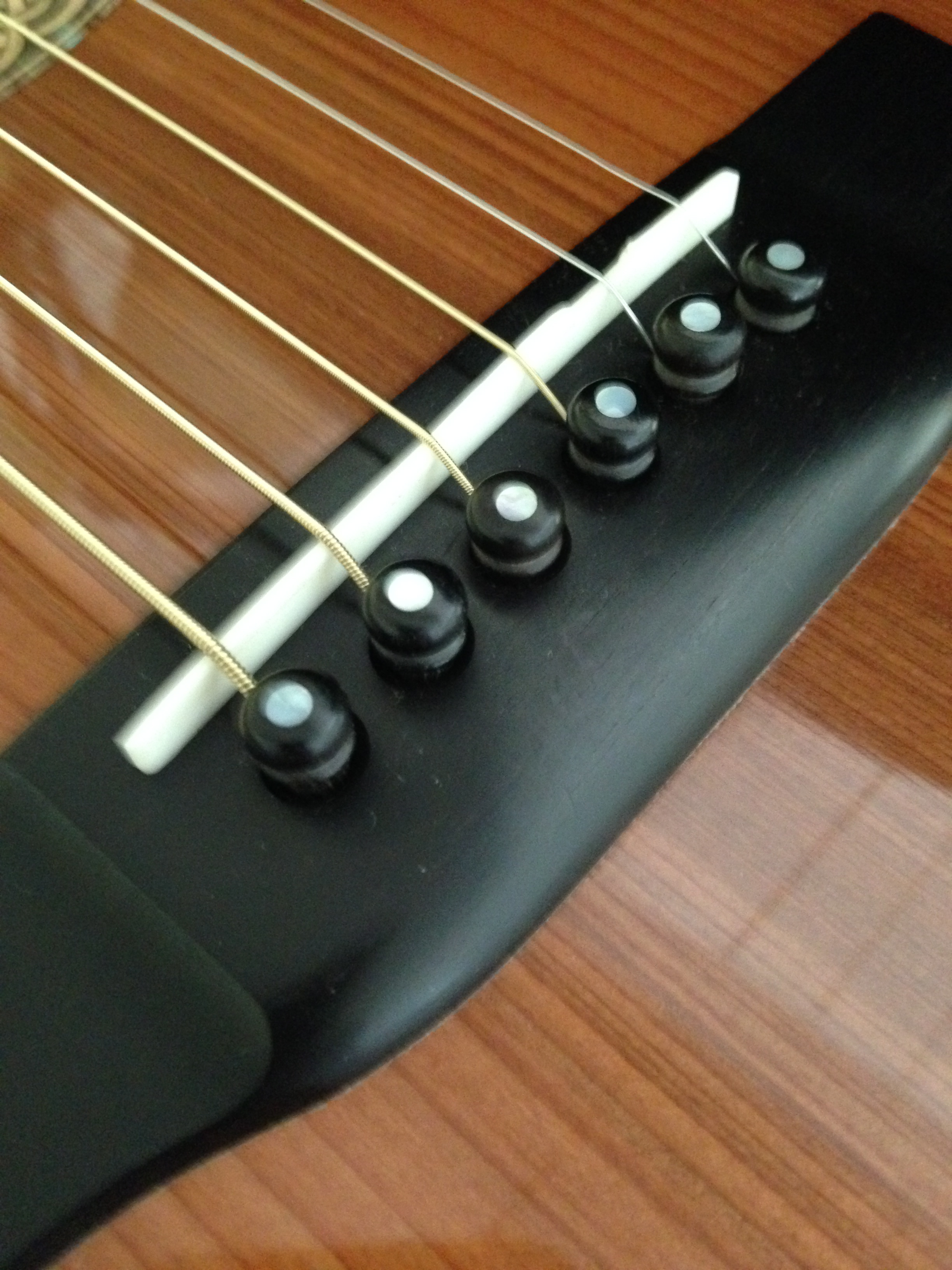

Ebony bridge;

Abalone Paua head stock logo inlay;

Indian rosewood headstock veneer;

Waverly 3-on-a-plate gold carved tuners with Snakewood buttons.

* the lower tone bar braces are intentionally flipped on this guitar to enhance treble.
